As a Senior Roofing Specialist with Stewart MacGyver's roofer Co, I’ve learned that the spring rains in Claymont, Delaware, are nature's way of testing a roof's integrity. After a long winter of freeze-thaw cycles, May is often the month when small, hidden issues become urgent problems. That was exactly the case when we received a call from a homeowner in one of Claymont's beautiful historic neighborhoods. They had noticed a discolored, damp spot appearing on the ceiling of their second-floor living room, right below their stately brick chimney.
Living in a gorgeous pre-1940s Tudor-style home, they were rightfully concerned about protecting its original plaster and intricate woodwork. They needed a team that understood the unique challenges of older homes and could provide a permanent solution, not just a temporary patch. They knew that a persistent roof leak around chimney case study like theirs required specialists, which is why they reached out to us at Stewart MacGyver's roofer Co.
The Assessment

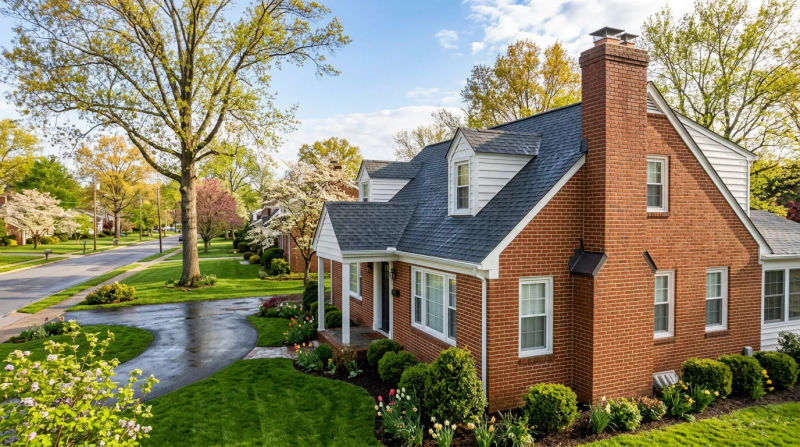

When I arrived at the property, I was immediately struck by the home's character. The steep, multi-gabled roofline and massive brick chimney were hallmarks of its era - built with a level of craftsmanship you don't often see today. However, these complex features are also prime locations for water intrusion if not maintained perfectly.
My initial on-roof inspection confirmed my suspicions. The problem was centered entirely around the chimney flashing system. Here’s what I documented:
- Failed Materials: The existing flashing was made of aged galvanized steel. Decades of exposure had caused it to rust through in several spots, creating pinhole leaks that allowed water to seep onto the roof deck below.
- Compromised Step Flashing: The L-shaped pieces of metal woven into the shingle courses along the chimney's sides - the step flashing - had begun to pull away from the brick. Gaps had formed where the flashing met the mortar, providing a direct path for rainwater.
- Cracked Counter-Flashing: The counter-flashing, which is the metal set into the chimney's mortar joints to cover the step flashing, was failing. The mortar holding it in place was cracked and crumbling, a common victim of Delaware's freeze-thaw cycles.
- The Critical Flaw: No Chimney Cricket: The most significant issue was a complete lack of a chimney cricket. A cricket is a small, peaked structure built on the high side of a chimney to divert water around it. On a wide chimney like this one, its absence meant that water and debris would pool against the back wall, creating a dam that forced moisture under the shingles and through the flashing seams. This was a textbook scenario for a persistent leak.
It was clear that a simple caulking job or patching the visible rust spots wouldn't solve the problem. The entire flashing system was fundamentally flawed and had reached the end of its service life. The homeowners needed a comprehensive chimney flashing repair that addressed the root cause.
Our Solution
After walking the homeowner through my findings with detailed photos, I presented a clear, step-by-step plan from Stewart MacGyver's roofer Co. Our approach is always to fix the problem correctly and permanently, ensuring our clients have total peace of mind. We dispatched one of our highly trained 4-person crews to execute the repair in a single, efficient visit.
The process was methodical and followed our company's high standards:
- Careful Demolition and Deck Inspection: Our team began by setting up safety lines and protecting the surrounding roof and landscaping. We carefully removed all the shingles and old, failed flashing from around the chimney's base. This exposed the underlying wood decking, where we found a small, localized area of soft, water-damaged plywood. We cut out the compromised section and replaced it with new, solid sheathing to create a sound substrate.
- Installing a Bulletproof Underlayment: Before any new metal was installed, we applied a high-temperature ice and water shield. This self-adhering waterproof membrane was laid directly on the roof deck and extended several inches up the brick face of the chimney, creating a seamless, watertight basin. This secondary barrier is a non-negotiable part of any Stewart MacGyver's roofer Co flashing project.
- Building a Custom Chimney Cricket: The next, and most crucial, step was the chimney cricket install Delaware homeowners need for wide chimneys. Our crew framed the cricket's triangular structure on the high side of the chimney. Once framed, it was sheathed and completely wrapped in the same ice and water shield, ensuring any water that found its way there would be safely diverted.
- Fabricating and Installing the New Flashing System: This is where the true step flashing fix Claymont DE leak solution came to life.
- We started with a new, custom-bent apron flashing at the front of the chimney.
- Next, we meticulously wove new, heavy-gauge aluminum step flashing pieces with each course of new architectural shingles, ensuring a tight fit against the brick.
- The new chimney cricket and the back of the chimney were then covered with custom-fabricated metal panels.
- Securing the Counter-Flashing: To complete the system, our technicians used grinders to cut a clean, new reglet into the chimney's mortar joints. The new counter-flashing was then inserted into this groove and sealed with high-grade polyurethane sealant and fresh mortar. This creates a durable, weather-tight seal that protects the top edge of the step flashing from the elements.
The Results
The transformation was immediate and impressive. Where there was once rusted, failing metal, there was now a clean, robust, and professionally installed flashing system. The new chimney cricket, seamlessly integrated into the roofline, looked as though it had always been part of the home's original design. The work performed by the Stewart MacGyver's roofer Co team not only solved the leak but also enhanced the home’s classic aesthetic.
The homeowners were thrilled. They no longer had to watch the sky with anxiety, wondering if the next spring downpour would mean more water damage. They had a permanent solution that protected their historic home's structure and value.
A few weeks later, after a series of heavy thunderstorms rolled through Claymont, we received a follow-up email from the client. They were happy to report that the ceiling was perfectly dry, and there was no sign of any moisture. This is the result we strive for on every project - a confirmed, watertight solution and a completely satisfied customer. By investing in a proper repair that addressed the missing cricket, they avoided years of costly cosmetic fixes and the risk of significant structural rot.
This project is a perfect roof leak around chimney case study that highlights the importance of thorough diagnostics and expert execution. It’s a testament to the skill and dedication our crews bring to every job site.
